CONN D-SUB PLUG 15POS R/A SLDR

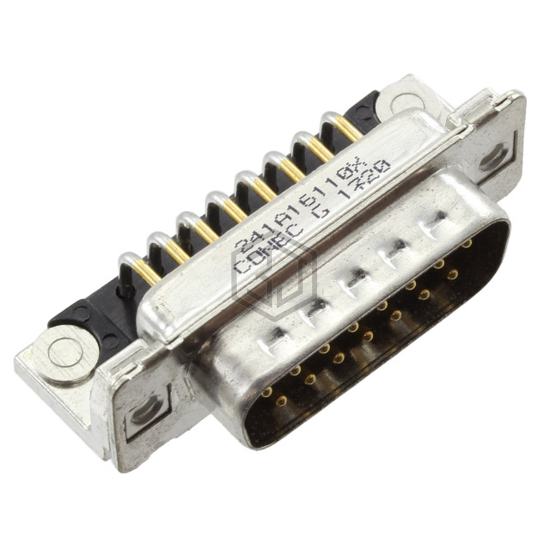

241A16110X is a D-Sub Connectors manufactured by Conec. CONN D-SUB PLUG 15POS R/A SLDR. Key specifications: mounting type Board Edge, Through Hole, Right Angle, current rating (amps) 7.5A, termination Solder, ingress protection IP20.
In Stock: 24
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Shell Size, Connector Layout | 2 (DA, A) |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 8.00µin (0.203µm) |
| Ingress Protection | IP20 |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 7.5A |
| Backset Spacing | 0.283" (7.20mm) |
| Features | Board Lock, Filter, Grounding Indents |
