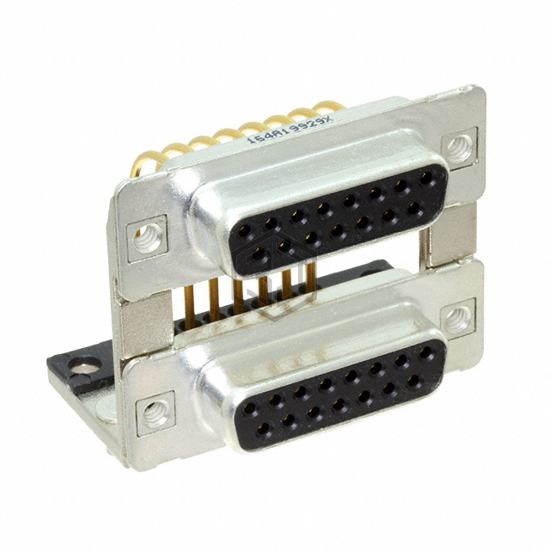

CONN D-SUB RCPT 15POS R/A SLDR
164A19929X is a D-Sub Connectors manufactured by Conec. CONN D-SUB RCPT 15POS R/A SLDR. Key specifications: mounting type Board Edge, Through Hole, Right Angle, current rating (amps) 7.5A, termination Solder, ingress protection IP20.
In Stock: 17
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub - Stacked |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 15, 15 |
| Number of Rows | 2, 2 |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Shell Size, Connector Layout | 2 (DA, A); 2 (DA, A) |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Ingress Protection | IP20 |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 7.5A |
| Backset Spacing | 0.283" (7.20mm) |
| Features | Board Lock, Mounting Brackets |
Submit your RFQ for 164A19929X and get a quote within 24 hours.
