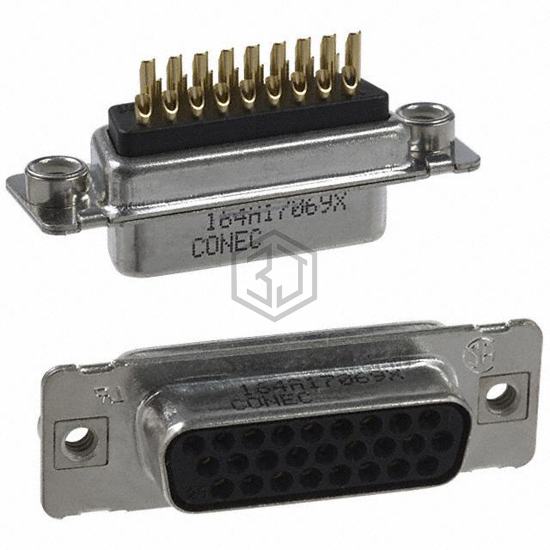

CONN D-SUB HD RCPT 26P SLDR CUP
164A17069X is a D-Sub Connectors manufactured by Conec. CONN D-SUB HD RCPT 26P SLDR CUP. Key specifications: mounting type Free Hanging (In-Line), current rating (amps) 3A, termination Solder Cup, ingress protection IP20.
In Stock: 37
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, High Density |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 26 |
| Number of Rows | 3 |
| Mounting Type | Free Hanging (In-Line) |
| Shell Size, Connector Layout | 2 (DA, A) High Density |
| Contact Type | Signal |
| Flange Feature | Cable Side (4-40) |
| Termination | Solder Cup |
| Primary Material | - |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 8.00µin (0.203µm) |
| Ingress Protection | IP20 |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 3A |
| Backset Spacing | - |
| Features | - |
Submit your RFQ for 164A17069X and get a quote within 24 hours.
