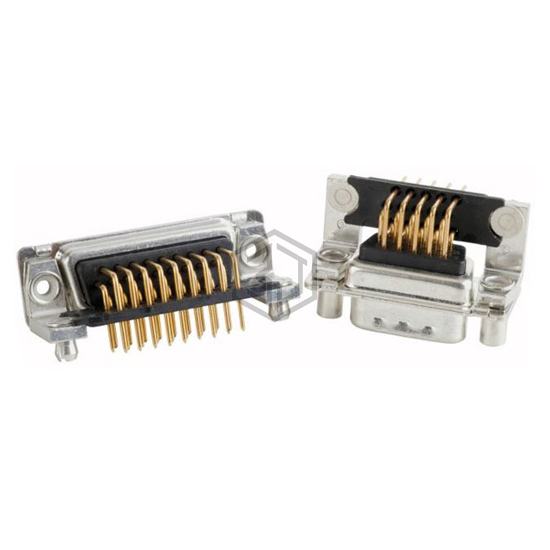

CONN D-SUB HD PLUG 15P R/A SLDR
163A17849X is a D-Sub Connectors manufactured by Conec. CONN D-SUB HD PLUG 15P R/A SLDR. Key specifications: mounting type Board Edge, Through Hole, Right Angle, current rating (amps) 3A, termination Solder, ingress protection IP20.
In Stock: 25
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, High Density |
| Connector Type | Plug, Male Pins |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Shell Size, Connector Layout | 1 (DE, E) High Density |
| Contact Type | Signal |
| Flange Feature | Mating Side (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 8.00µin (0.203µm) |
| Ingress Protection | IP20 |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 3A |
| Backset Spacing | 0.314" (7.98mm) |
| Features | Board Lock, Grounding Indents |
Submit your RFQ for 163A17849X and get a quote within 24 hours.
