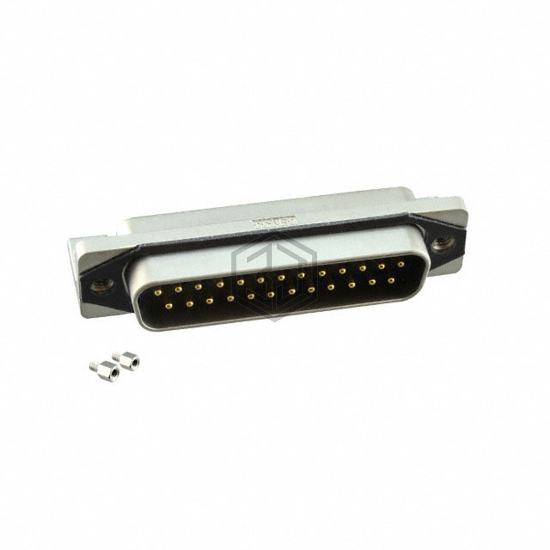

CONN D-SUB PLUG 25POS R/A SLDR
15-006563 is a D-Sub Connectors manufactured by Conec. CONN D-SUB PLUG 25POS R/A SLDR. Key specifications: mounting type Board Edge, Through Hole, Right Angle, current rating (amps) 5A, termination Solder, ingress protection IP67 - Dust Tight, Waterproof.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Shell Size, Connector Layout | 3 (DB, B) |
| Contact Type | Signal |
| Flange Feature | Board Side (4-40); Mating Side, Female Screwlock (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Zinc Die Cast, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 5A |
| Backset Spacing | 0.232" (5.89mm) |
| Features | Board Lock, Gasket, Mounting Brackets |
Submit your RFQ for 15-006563 and get a quote within 24 hours.
