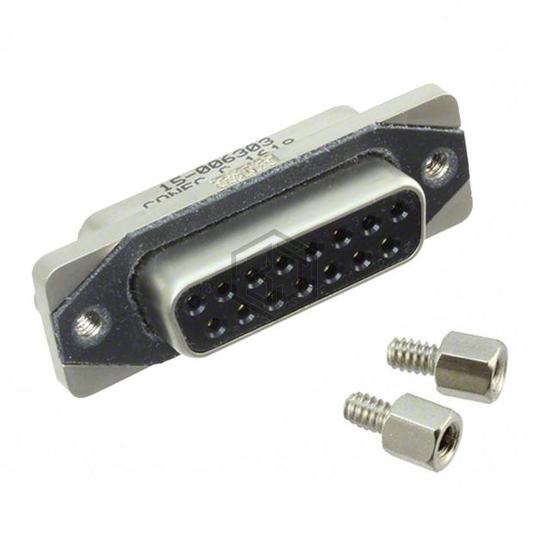

CONN D-SUB RCPT 15POS PNL MNT
15-006303 is a D-Sub Connectors manufactured by Conec. CONN D-SUB RCPT 15POS PNL MNT. Key specifications: mounting type Panel Mount, current rating (amps) 7.5A, termination Solder Cup, ingress protection IP67 - Dust Tight, Waterproof.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Mounting Type | Panel Mount |
| Shell Size, Connector Layout | 2 (DA, A) |
| Contact Type | Signal |
| Flange Feature | Cable Side (4-40); Mating Side, Female Screwlock (4-40) |
| Termination | Solder Cup |
| Primary Material | - |
| Shell Material, Finish | Zinc Die Cast, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 7.5A |
| Backset Spacing | - |
| Features | Gasket |
Submit your RFQ for 15-006303 and get a quote within 24 hours.
