CONN D-SUB RCPT 37POS PNL MNT

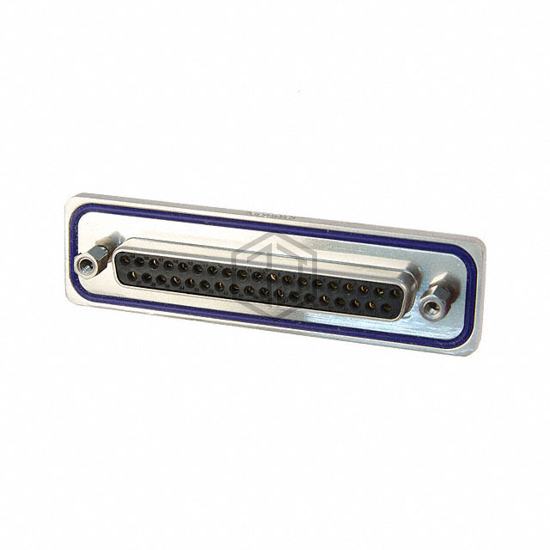

15-000643 is a D-Sub Connectors manufactured by Conec. CONN D-SUB RCPT 37POS PNL MNT. Key specifications: mounting type Panel Mount, current rating (amps) 7.5A, termination Solder Cup, ingress protection IP67 - Dust Tight, Waterproof.
In Stock: 100
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Mounting Type | Panel Mount |
| Shell Size, Connector Layout | 4 (DC, C) |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Termination | Solder Cup |
| Primary Material | - |
| Shell Material, Finish | Zinc Die Cast, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 8.00µin (0.203µm) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 7.5A |
| Backset Spacing | - |
| Features | - |
Submit your RFQ for 15-000643 and get a quote within 24 hours.
