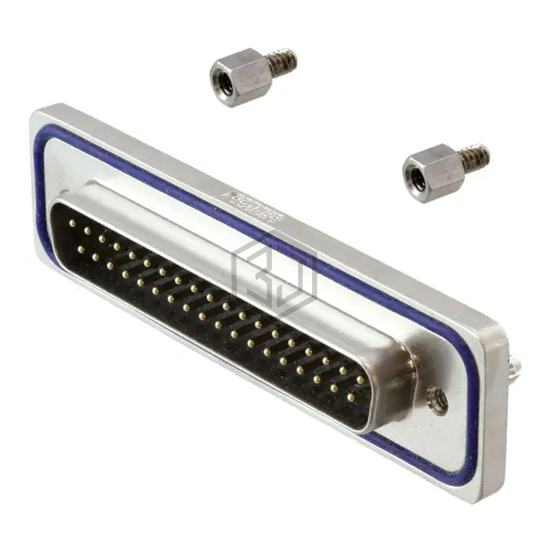

CONN D-SUB PLUG 37P PNL MNT SLDR
15-000443 is a D-Sub Connectors manufactured by Conec. CONN D-SUB PLUG 37P PNL MNT SLDR. Key specifications: mounting type Panel Mount, Through Hole, current rating (amps) 7.5A, termination Solder, ingress protection IP67 - Dust Tight, Waterproof.
In Stock: 16
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Mounting Type | Panel Mount, Through Hole |
| Shell Size, Connector Layout | 4 (DC, C) |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Zinc Die Cast, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 8.00µin (0.203µm) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 7.5A |
| Backset Spacing | - |
| Features | Board Lock |
