SWITCH REED SPST-NO 250MA 140V

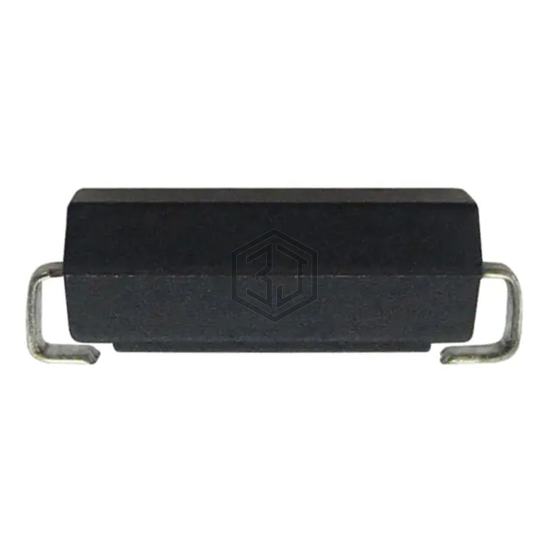

RI80SMDM-0510-J1 is a Magnetic, Reed Switches manufactured by Comus International. SWITCH REED SPST-NO 250MA 140V. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, termination style J Lead, power - rated 5W.
In Stock: 15,050
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded Body Reed |
| Circuit | SPST-NO |
| Operate Range | 5 ~ 10AT |
| Release Range | - |
| Current - Switching | 250mA (AC), 350mA (DC) |
| Voltage - Switching AC | 140 V |
| Voltage - Switching DC | 175 V |
| Power - Rated | 5W |
| Operate Time | 0.35 ms |
| Release Time | 0.02 ms |
| Mounting Type | Surface Mount |
| Termination Style | J Lead |
| Length - Overall | 0.295" (7.49mm) |
| Size - Body | 0.275" L x 0.091" W x 0.091" H (7.00mm x 2.31mm x 2.31mm) |
| Height Above Board | 0.095" (2.41mm) |
| Operating Temperature | -40°C ~ 125°C |
| Capacitance | - |
| Current - Carry | 500mA (DC) |
Submit your RFQ for RI80SMDM-0510-J1 and get a quote within 24 hours.
