SWITCH REED SPST-NO 250MA 140V

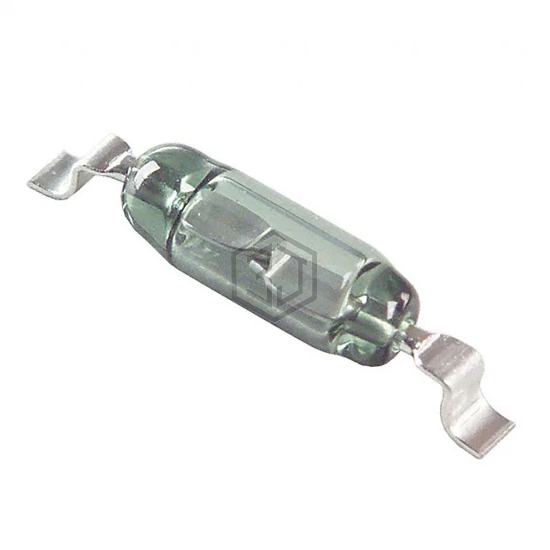

RI-80SMD-1015-G1 is a Magnetic, Reed Switches manufactured by Comus International. SWITCH REED SPST-NO 250MA 140V. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, termination style Gull Wing, power - rated 5W.
In Stock: 7,312
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Glass Body Reed |
| Circuit | SPST-NO |
| Operate Range | 10 ~ 15AT |
| Release Range | 4 ~ 13AT |
| Current - Switching | 250mA (AC), 350mA (DC) |
| Voltage - Switching AC | 140 V |
| Voltage - Switching DC | 175 V |
| Power - Rated | 5W |
| Operate Time | 0.35 ms |
| Release Time | 0.02 ms |
| Mounting Type | Surface Mount |
| Termination Style | Gull Wing |
| Length - Overall | 0.342" (8.68mm) |
| Size - Body | 0.070" Dia x 0.196" L (1.78mm x 4.98mm) |
| Height Above Board | 0.075" (1.90mm) |
| Operating Temperature | -55°C ~ 125°C |
| Capacitance | 0.45 pF |
| Current - Carry | 500mA (DC) |
