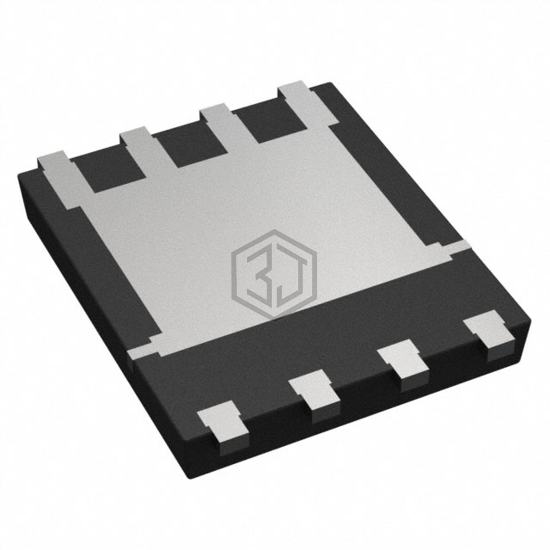

MOSFET P-CH 30V 9.6A/45A DFN5X6
CMS45P03H8-HF is a Transistors - FETs, MOSFETs - Single manufactured by Comchip Technology. MOSFET P-CH 30V 9.6A/45A DFN5X6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 9.6A (Ta), 45A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 15mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 22 nC @ 4.5 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2215 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 2W (Ta), 45W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DFN5x6 (PR-PAK) |
| Package / Case | 8-PowerTDFN |
Submit your RFQ for CMS45P03H8-HF and get a quote within 24 hours.
