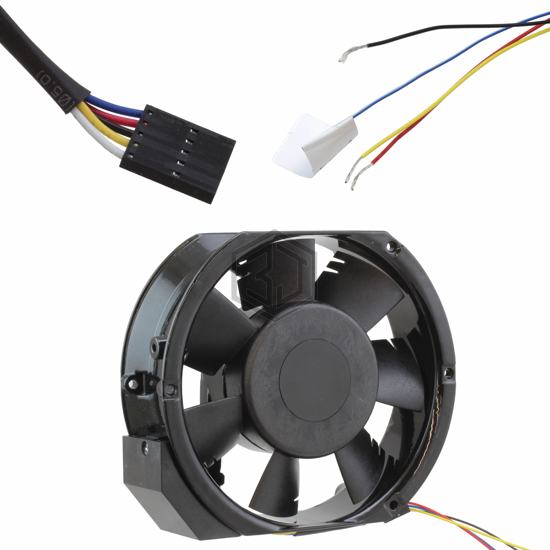

FAN AXIAL 171.4X50.8MM JQD48Z3A2
19039693A is a DC Brushless Fans (BLDC) manufactured by Comair Rotron. FAN AXIAL 171.4X50.8MM JQD48Z3A2. Key specifications: operating temperature -40 ~ 185°F (-40 ~ 85°C), voltage - rated 48VDC, size / dimension Rectangular/Rounded - 171.4mm L x 150.4mm H, termination 5 Position Rectangular Connector.
In Stock: 98
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 48VDC |
| Size / Dimension | Rectangular/Rounded - 171.4mm L x 150.4mm H |
| Width | 50.80mm |
| Air Flow | 300.0 CFM (8.40m³/min) |
| Static Pressure | 1.300 in H2O (323.6 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Noise | 60.2dB(A) |
| Power (Watts) | 35 W |
| RPM | 4450 RPM |
| Termination | 5 Position Rectangular Connector |
| Ingress Protection | - |
| Operating Temperature | -40 ~ 185°F (-40 ~ 85°C) |
| Approval Agency | CE, UL |
| Weight | - |
