TRANSFORMER

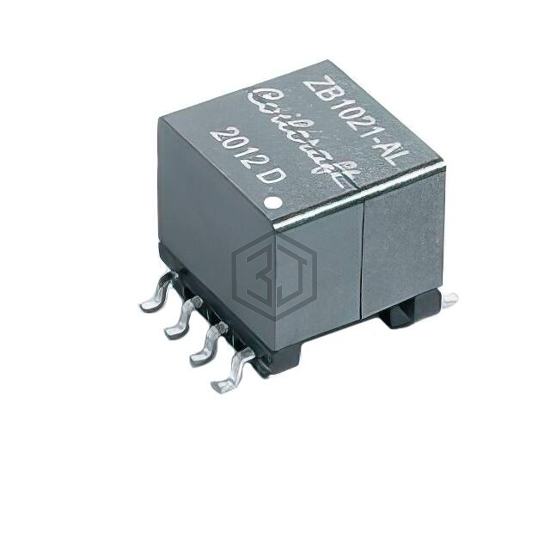

ZB1021-ALD is a Switching Converter, SMPS Transformers manufactured by COILCRAFT. TRANSFORMER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, size / dimension 0.500" L x 0.413" W (12.70mm x 10.50mm), frequency 150kHz.
In Stock: 2,681
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Applications | - |
| Intended Chipset | - |
| Chipset Manufacturer | - |
| Voltage - Primary | 17 ~ 36V |
| Voltage - Auxiliary | - |
| Voltage - Isolation | 1500Vrms |
| Inductance @ Frequency | 22µH @ 150kHz |
| Frequency | 150kHz |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.500" L x 0.413" W (12.70mm x 10.50mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Footprint | 0.600" L x 0.500" W (15.24mm x 12.70mm) |
| Style | - |
Submit your RFQ for ZB1021-ALD and get a quote within 24 hours.
