ZA9709-AED
TRANSFORMER

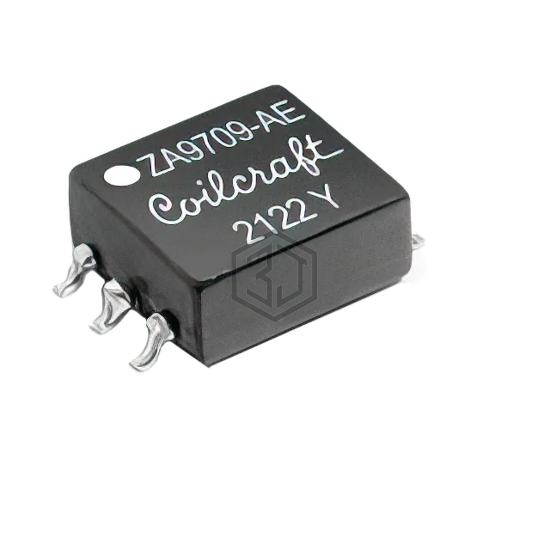

ZA9709-AED is a Switching Converter, SMPS Transformers manufactured by COILCRAFT. TRANSFORMER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C.
In Stock: 4,402
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | For DC/DC Converters |
| Applications | Forward, Push-Pull Converters |
| Intended Chipset | SN6505B |
| Chipset Manufacturer | Texas Instruments |
| Voltage - Primary | 3.3V |
| Voltage - Auxiliary | - |
| Voltage - Isolation | 2500Vrms |
| Inductance @ Frequency | 145µH @ 100kHz |
| Frequency | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Size / Dimension | - |
| Height - Seated (Max) | 0.171" (4.34mm) |
| Footprint | 0.512" L x 0.347" W (13.00mm x 8.82mm) |
| Style | - |
Frequently Asked Questions
ZA9709-AED is a Switching Converter, SMPS Transformers manufactured by COILCRAFT. TRANSFORMER
The mounting type of ZA9709-AED is Surface Mount.
The operating temperature range of ZA9709-AED is -40°C ~ 125°C.
