ZA9670-BED
TRANSFORMER

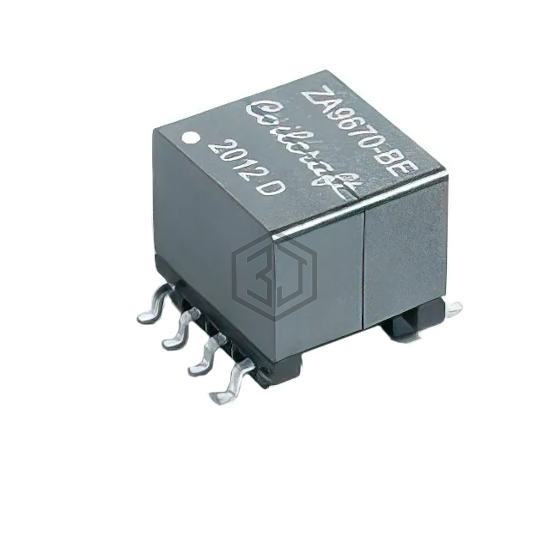

ZA9670-BED is a Switching Converter, SMPS Transformers manufactured by COILCRAFT. TRANSFORMER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, frequency 300kHz.
In Stock: 9,887
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | For DC/DC Converters |
| Applications | Flyback Converters |
| Intended Chipset | LM25184 |
| Chipset Manufacturer | Texas Instruments |
| Voltage - Primary | 4 ~ 42V |
| Voltage - Auxiliary | - |
| Voltage - Isolation | 1500Vrms |
| Inductance @ Frequency | 9µH |
| Frequency | 300kHz |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Size / Dimension | - |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Footprint | 0.520" L x 0.430" W (13.21mm x 10.92mm) |
| Style | - |
Frequently Asked Questions
ZA9670-BED is a Switching Converter, SMPS Transformers manufactured by COILCRAFT. TRANSFORMER
The mounting type of ZA9670-BED is Surface Mount.
The operating temperature range of ZA9670-BED is -40°C ~ 85°C.
The frequency of ZA9670-BED is 300kHz.
