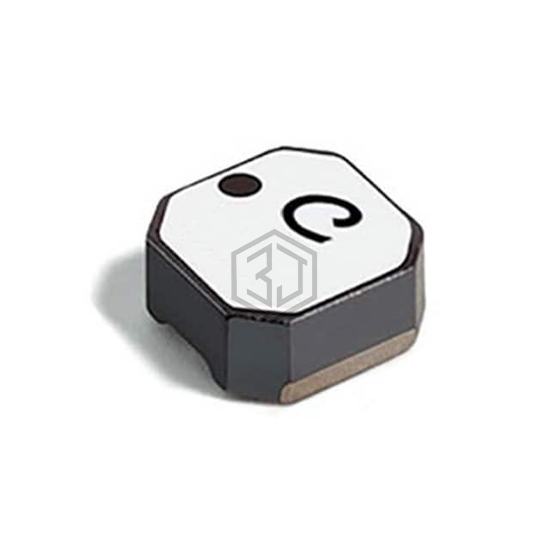

FIXED IND 820UH 140MA 14 OHM SMD
LPS4018-824MRC is a Fixed Inductors manufactured by COILCRAFT. FIXED IND 820UH 140MA 14 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 140 mA.
In Stock: 659
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 820 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 140 mA |
| Current - Saturation (Isat) | 130mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 14Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 2.9MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.154" L x 0.154" W (3.90mm x 3.90mm) |
| Height - Seated (Max) | 0.071" (1.80mm) |
Submit your RFQ for LPS4018-824MRC and get a quote within 24 hours.
