FIXED IND 120UH 230MA 4.65OHM SM

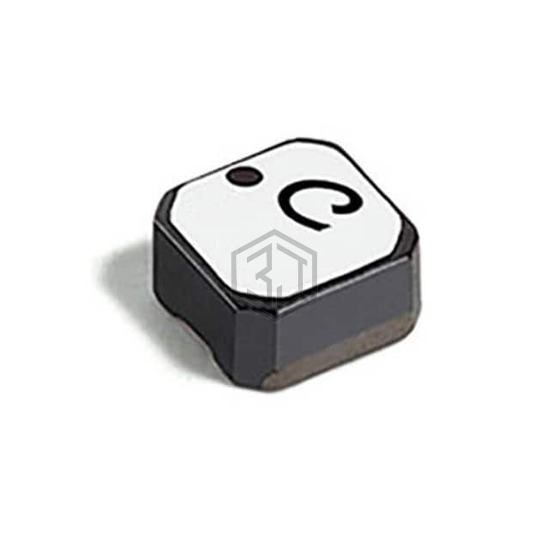

LPS3015-124MRC is a Fixed Inductors manufactured by COILCRAFT. FIXED IND 120UH 230MA 4.65OHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 230 mA.
In Stock: 748
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 120 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 230 mA |
| Current - Saturation (Isat) | 220mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 4.65Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 9MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.116" L x 0.116" W (2.95mm x 2.95mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |
Submit your RFQ for LPS3015-124MRC and get a quote within 24 hours.
