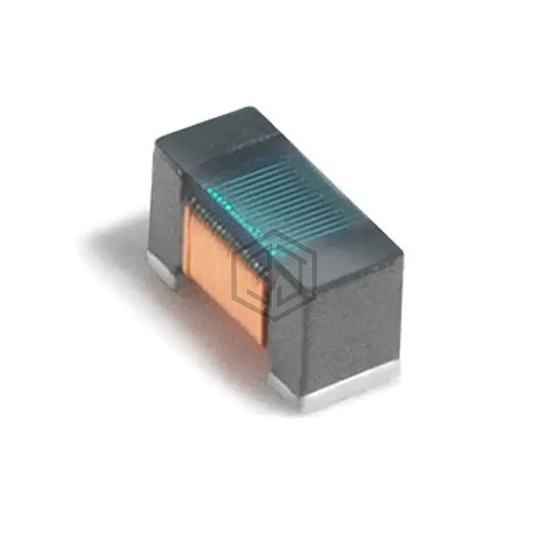

FIXED IND 330NH 430MA 435MOHM SM
0402DF-331XJRW is a Fixed Inductors manufactured by COILCRAFT. FIXED IND 330NH 430MA 435MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 0402 (1005 Metric), current rating (amps) 430 mA.
In Stock: 1,250
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 330 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 430 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 435mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 1.34GHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 7.9 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Size / Dimension | 0.044" L x 0.026" W (1.11mm x 0.66mm) |
| Height - Seated (Max) | 0.026" (0.66mm) |
Submit your RFQ for 0402DF-331XJRW and get a quote within 24 hours.
