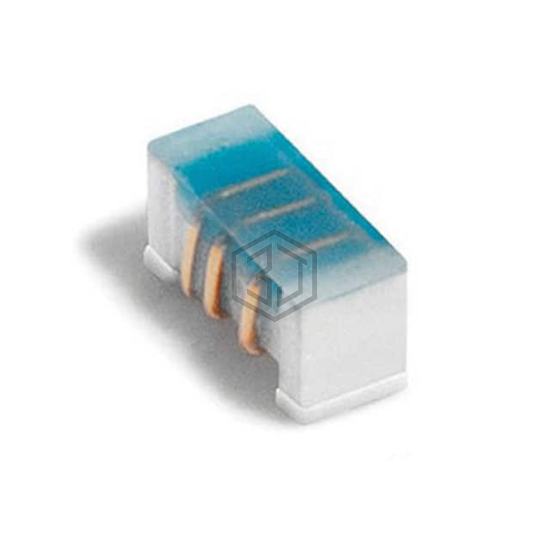

FIXED IND 4.3NH 1.85A 48MOHM SMD
0402DC-4N3XGRW is a Fixed Inductors manufactured by COILCRAFT. FIXED IND 4.3NH 1.85A 48MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 0402 (1005 Metric), current rating (amps) 1.85 A.
In Stock: 2,903
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 4.3 nH |
| Tolerance | ±2% |
| Current Rating (Amps) | 1.85 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 48mOhm Max |
| Q @ Freq | 62 @ 900MHz |
| Frequency - Self Resonant | 13.8GHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Size / Dimension | 0.044" L x 0.026" W (1.11mm x 0.66mm) |
| Height - Seated (Max) | 0.026" (0.65mm) |
