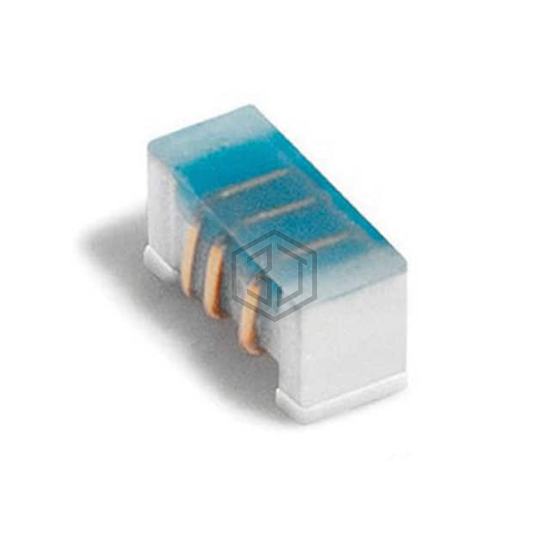

FIXED IND 43NH 640MA 430MOHM SMD
0402DC-43NXJRW is a Fixed Inductors manufactured by COILCRAFT. FIXED IND 43NH 640MA 430MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 0402 (1005 Metric), current rating (amps) 640 mA.
In Stock: 34
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 43 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 640 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 430mOhm Max |
| Q @ Freq | 55 @ 900MHz |
| Frequency - Self Resonant | 3.82GHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Size / Dimension | 0.044" L x 0.026" W (1.11mm x 0.66mm) |
| Height - Seated (Max) | 0.026" (0.65mm) |
Submit your RFQ for 0402DC-43NXJRW and get a quote within 24 hours.
