FIXED IND 8.2UH 9.50A 19.5MOHM S

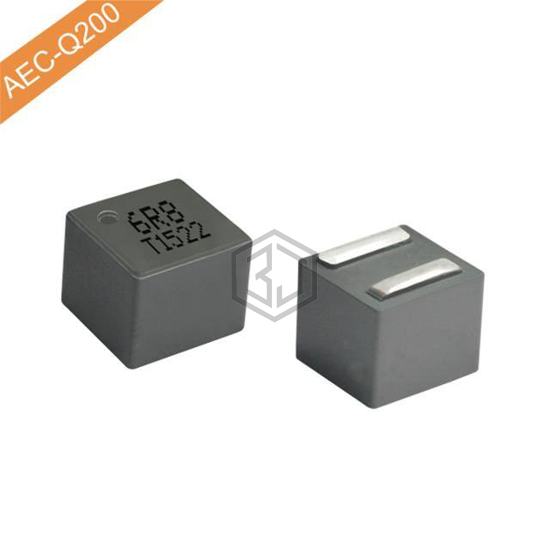

CSEB0770H-8R2M is a Fixed Inductors manufactured by CODACA. FIXED IND 8.2UH 9.50A 19.5MOHM S. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 9.5 A.
In Stock: 600
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal Composite |
| Inductance | 8.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 9.5 A |
| Current - Saturation (Isat) | 9.6A |
| Shielding | Shielded |
| DC Resistance (DCR) | 19.5mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.311" L x 0.299" W (7.90mm x 7.60mm) |
| Height - Seated (Max) | 0.280" (7.10mm) |
Submit your RFQ for CSEB0770H-8R2M and get a quote within 24 hours.
