FIXED IND 1.5UH 16.3A 6.40MOHM S

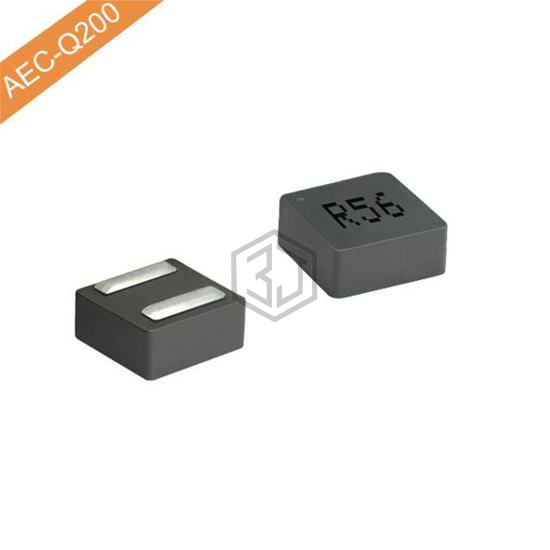

CSEB0660H-1R5M is a Fixed Inductors manufactured by CODACA. FIXED IND 1.5UH 16.3A 6.40MOHM S. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 16.3 A.
In Stock: 700
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal Composite |
| Inductance | 1.5 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 16.3 A |
| Current - Saturation (Isat) | 16.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 6.4mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.262" L x 0.254" W (6.65mm x 6.45mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
Submit your RFQ for CSEB0660H-1R5M and get a quote within 24 hours.
