FIXED IND 5.6UH 7.30A 25.5MOHM S

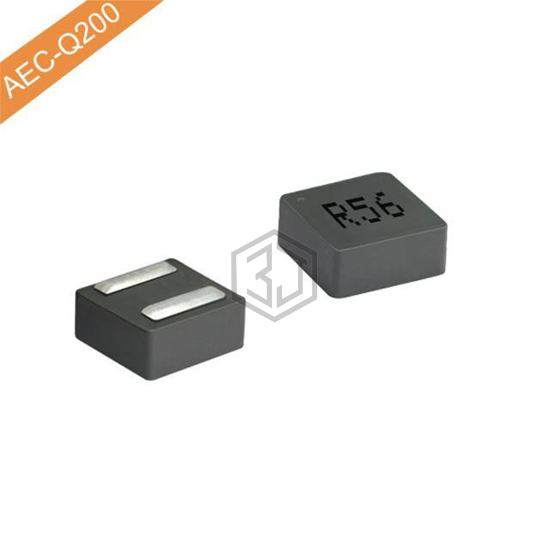

CSEB0550H-5R6M is a Fixed Inductors manufactured by CODACA. FIXED IND 5.6UH 7.30A 25.5MOHM S. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 7.3 A.
In Stock: 500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal Composite |
| Inductance | 5.6 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 7.3 A |
| Current - Saturation (Isat) | 5.7A |
| Shielding | Shielded |
| DC Resistance (DCR) | 25.5mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.219" L x 0.211" W (5.55mm x 5.35mm) |
| Height - Seated (Max) | 0.201" (5.10mm) |
Submit your RFQ for CSEB0550H-5R6M and get a quote within 24 hours.
