FIXED IND 1.2UH 10.5A 8.80MOHM S

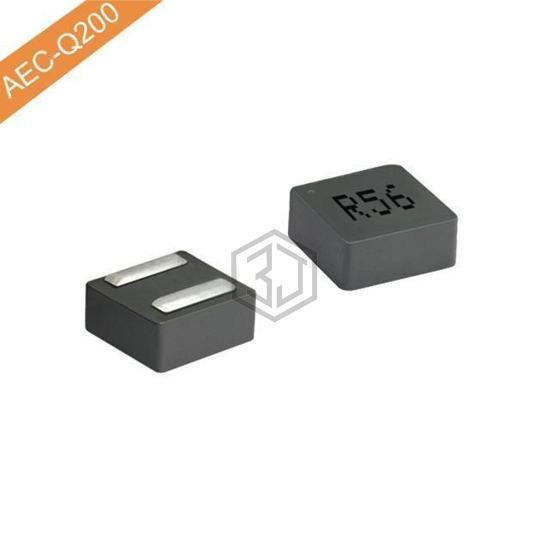

CSEB0530H-1R2M is a Fixed Inductors manufactured by CODACA. FIXED IND 1.2UH 10.5A 8.80MOHM S. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 10.5 A.
In Stock: 500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal Composite |
| Inductance | 1.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 10.5 A |
| Current - Saturation (Isat) | 11A |
| Shielding | Shielded |
| DC Resistance (DCR) | 8.8mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.219" L x 0.211" W (5.55mm x 5.35mm) |
| Height - Seated (Max) | 0.126" (3.20mm) |
Submit your RFQ for CSEB0530H-1R2M and get a quote within 24 hours.
