FIXED IND 6.8UH 50.0A 1.6MOHM SM

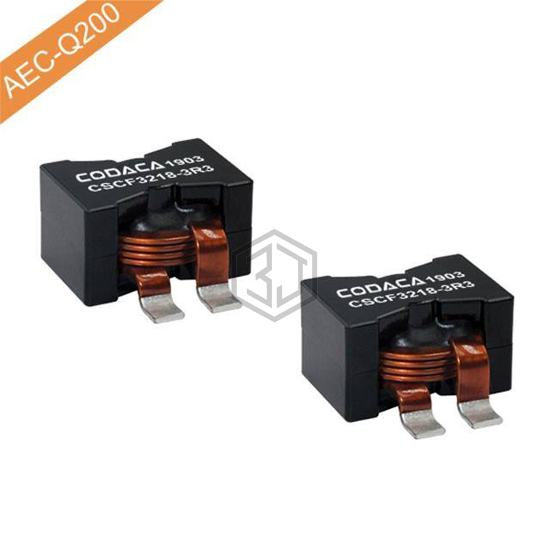

CSCF3218-6R8MC is a Fixed Inductors manufactured by CODACA. FIXED IND 6.8UH 50.0A 1.6MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 2-SMD, J-Lead, current rating (amps) 50 A.
In Stock: 18
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 50 A |
| Current - Saturation (Isat) | 55A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.6mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | 2-SMD, J-Lead |
| Size / Dimension | 1.260" L x 0.886" W (32.00mm x 22.50mm) |
| Height - Seated (Max) | 0.748" (19.00mm) |
