FIXED IND 10UH 30A 2.58MOHM SMD

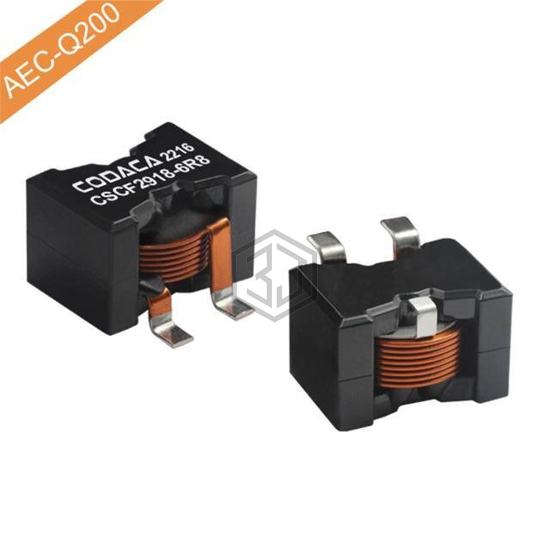

CSCF2918H-100MC is a Fixed Inductors manufactured by CODACA. FIXED IND 10UH 30A 2.58MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 30 A.
In Stock: 152
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 30 A |
| Current - Saturation (Isat) | 33A |
| Shielding | Shielded |
| DC Resistance (DCR) | 2.58mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 1.102" L x 1.063" W (28.00mm x 27.00mm) |
| Height - Seated (Max) | 0.728" (18.50mm) |
Submit your RFQ for CSCF2918H-100MC and get a quote within 24 hours.
