FIXED IND 10UH 23A 1.65MOHM SMD

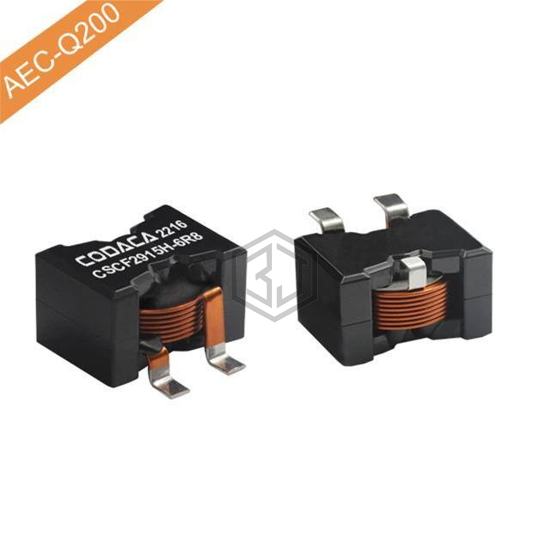

CSCF2915H-100MC is a Fixed Inductors manufactured by CODACA. FIXED IND 10UH 23A 1.65MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 32 A.
In Stock: 160
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 32 A |
| Current - Saturation (Isat) | 23A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.65mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 1.098" L x 1.098" W (27.90mm x 27.90mm) |
| Height - Seated (Max) | 0.606" (15.40mm) |
Submit your RFQ for CSCF2915H-100MC and get a quote within 24 hours.
