FIXED IND 22UH 11A 14.1MOHM SMD

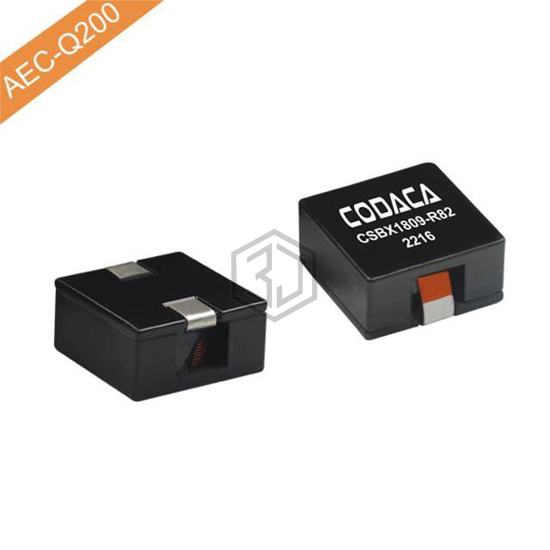

CSBX1809-220M is a Fixed Inductors manufactured by CODACA. FIXED IND 22UH 11A 14.1MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, package / case Nonstandard, current rating (amps) 11 A.
In Stock: 147
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 11 A |
| Current - Saturation (Isat) | 17.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 14.1mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.760" L x 0.717" W (19.30mm x 18.20mm) |
| Height - Seated (Max) | 0.362" (9.20mm) |
