FIXED IND 18UH 8.5A 17.5MOHM SMD

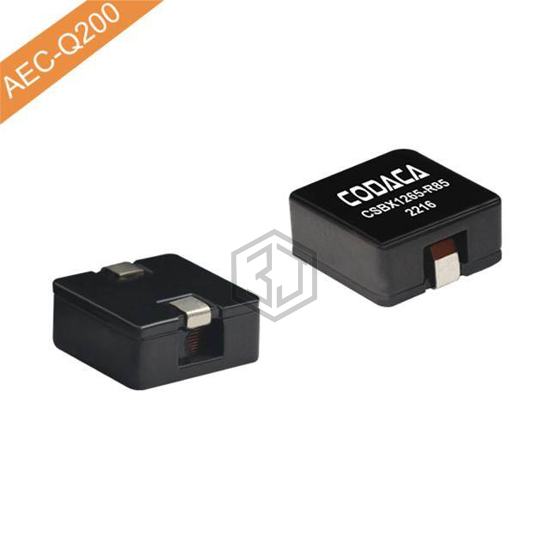

CSBX1265-180M is a Fixed Inductors manufactured by CODACA. FIXED IND 18UH 8.5A 17.5MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, package / case Nonstandard, current rating (amps) 8.5 A.
In Stock: 400
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 18 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 8.5 A |
| Current - Saturation (Isat) | 11.2A |
| Shielding | Shielded |
| DC Resistance (DCR) | 17.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.543" L x 0.504" W (13.80mm x 12.80mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
Submit your RFQ for CSBX1265-180M and get a quote within 24 hours.
