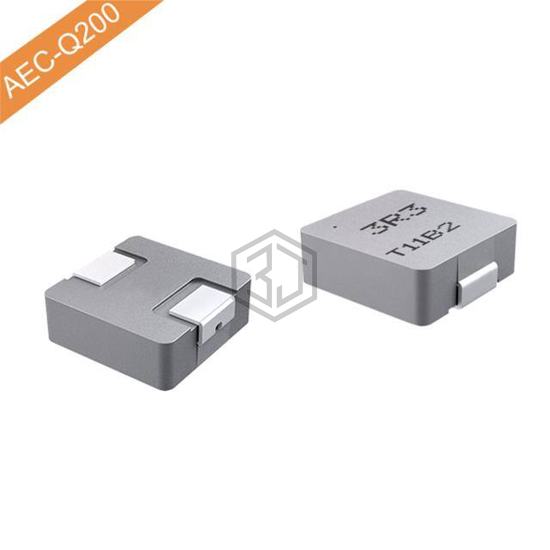

FIXED IND 0.47UH 35A 1.2MOHM SMD
CSAB1250A-R47M is a Fixed Inductors manufactured by CODACA. FIXED IND 0.47UH 35A 1.2MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 35 A.
In Stock: 490
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | Alloy Powder |
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 35 A |
| Current - Saturation (Isat) | 50A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.2mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.543" L x 0.496" W (13.80mm x 12.60mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for CSAB1250A-R47M and get a quote within 24 hours.
