FIXED IND 220UH 17.5A 11.5MOHM D

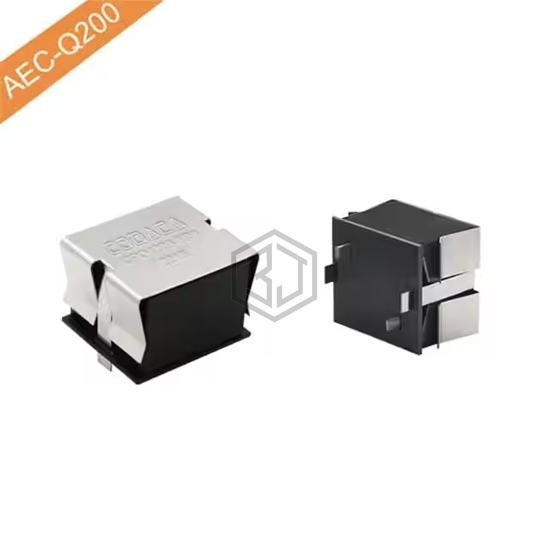

CPQ4228-221M is a Fixed Inductors manufactured by CODACA. FIXED IND 220UH 17.5A 11.5MOHM D. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case Vertical, 4 PC Pin, current rating (amps) 17.5 A.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 220 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 17.5 A |
| Current - Saturation (Isat) | 7.2A |
| Shielding | Shielded |
| DC Resistance (DCR) | 11.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Vertical, 4 PC Pin |
| Supplier Device Package | Vertical, 4 PC Pin |
| Size / Dimension | 1.654" L x 1.409" W (42.00mm x 35.80mm) |
| Height - Seated (Max) | 1.142" (29.00mm) |
