FIXED IND 3.3UH 33.7A 2.0MOHM DI

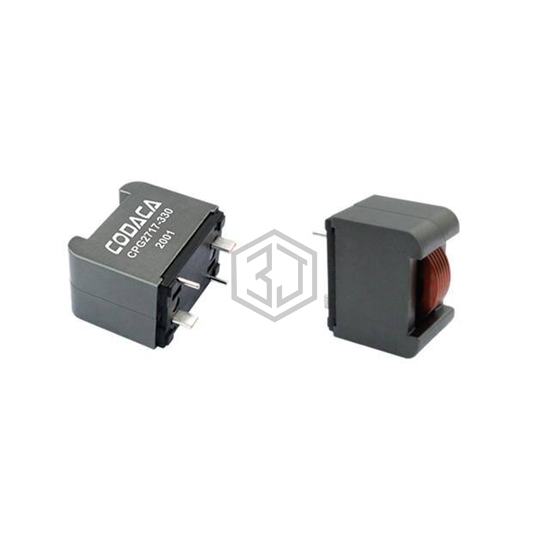

CPG2717-3R3M is a Fixed Inductors manufactured by CODACA. FIXED IND 3.3UH 33.7A 2.0MOHM DI. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case Vertical, 4 PC Pin, current rating (amps) 33.7 A.
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 33.7 A |
| Current - Saturation (Isat) | 85A |
| Shielding | Shielded |
| DC Resistance (DCR) | 2mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Vertical, 4 PC Pin |
| Supplier Device Package | Vertical, 4 PC Pin |
| Size / Dimension | 1.059" L x 0.650" W (26.90mm x 16.50mm) |
| Height - Seated (Max) | 0.898" (22.80mm) |
Submit your RFQ for CPG2717-3R3M and get a quote within 24 hours.
