FIXED IND 10UH 50.0A 1.05MOHM DI

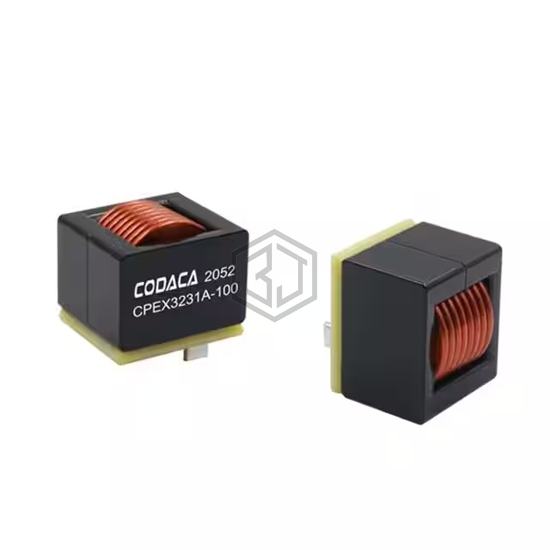

CPEX3231A-100MC is a Fixed Inductors manufactured by CODACA. FIXED IND 10UH 50.0A 1.05MOHM DI. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C, package / case Vertical, 2 PC Pin, current rating (amps) 50 A.
In Stock: 8
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 50 A |
| Current - Saturation (Isat) | 86A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.05mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Vertical, 2 PC Pin |
| Supplier Device Package | Radial |
| Size / Dimension | 1.291" L x 1.260" W (32.80mm x 32.00mm) |
| Height - Seated (Max) | 1.122" (28.50mm) |
Submit your RFQ for CPEX3231A-100MC and get a quote within 24 hours.
