FIXED IND 22UH 25.0A 4.1MOHM DIP

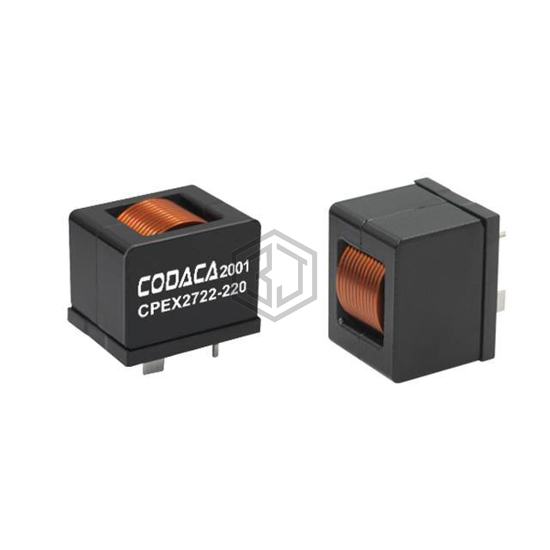

CPEX2722-220MC is a Fixed Inductors manufactured by CODACA. FIXED IND 22UH 25.0A 4.1MOHM DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C, package / case Vertical, 4 PC Pin, current rating (amps) 25 A.
In Stock: 18
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 25 A |
| Current - Saturation (Isat) | 33A |
| Shielding | Shielded |
| DC Resistance (DCR) | 4.1mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Vertical, 4 PC Pin |
| Supplier Device Package | Vertical, 4 PC Pin |
| Size / Dimension | 1.075" L x 0.846" W (27.30mm x 21.50mm) |
| Height - Seated (Max) | 0.898" (22.80mm) |
Submit your RFQ for CPEX2722-220MC and get a quote within 24 hours.
