FIXED IND 10UH 11A 8.4MOHM SMD

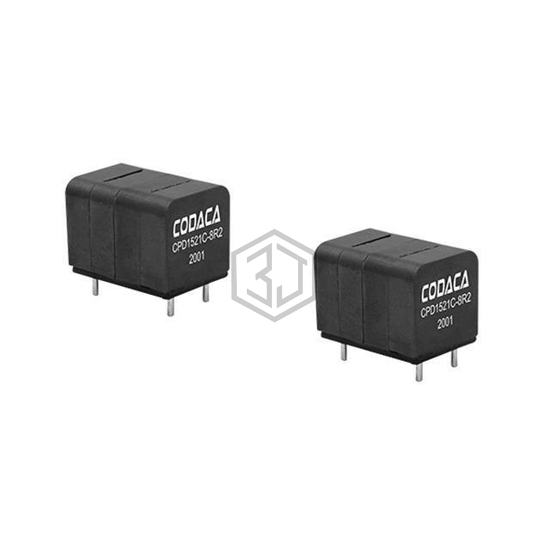

CPD1521C-100M is a Fixed Inductors manufactured by CODACA. FIXED IND 10UH 11A 8.4MOHM SMD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case Radial - 4 Leads, current rating (amps) 11 A.
In Stock: 238
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 11 A |
| Current - Saturation (Isat) | 15A |
| Shielding | Shielded |
| DC Resistance (DCR) | 8.4mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial - 4 Leads |
| Supplier Device Package | Radial - 4 Leads |
| Size / Dimension | 0.846" L x 0.591" W (21.50mm x 15.00mm) |
| Height - Seated (Max) | 0.618" (15.70mm) |
Submit your RFQ for CPD1521C-100M and get a quote within 24 hours.
