FIXED IND 10UH 8A 11MOHM SMD

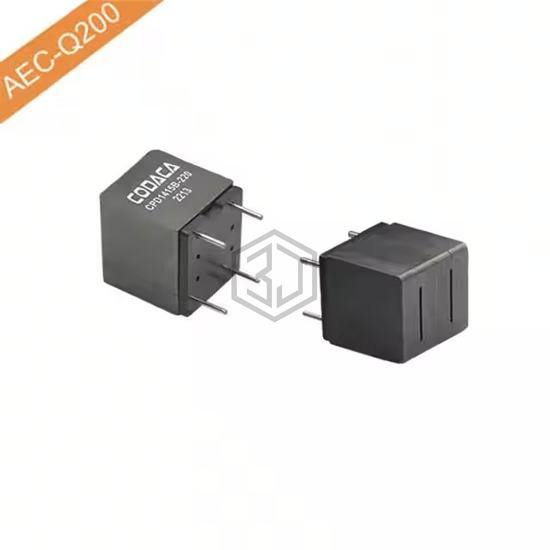

CPD1415B-100M is a Fixed Inductors manufactured by CODACA. FIXED IND 10UH 8A 11MOHM SMD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case Radial - 4 Leads, current rating (amps) 8 A.
In Stock: 480
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 8 A |
| Current - Saturation (Isat) | 12.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 11mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial - 4 Leads |
| Supplier Device Package | Radial - 4 Leads |
| Size / Dimension | 0.610" L x 0.551" W (15.50mm x 14.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
Submit your RFQ for CPD1415B-100M and get a quote within 24 hours.
