FIXED IND 6.5UH 35.0A 1.8MOHM DI

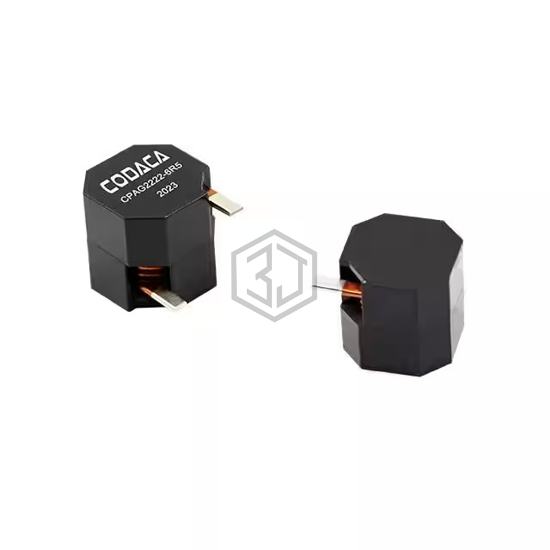

CPAG2222-6R5MC is a Fixed Inductors manufactured by CODACA. FIXED IND 6.5UH 35.0A 1.8MOHM DI. Key specifications: mounting type Through Hole, operating temperature -50°C ~ 155°C, package / case Vertical, 2 PC Pin, current rating (amps) 37 A.
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 6.5 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 37 A |
| Current - Saturation (Isat) | 66A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.8mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -50°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Vertical, 2 PC Pin |
| Supplier Device Package | Radial |
| Size / Dimension | 0.866" L x 0.866" W (22.00mm x 22.00mm) |
| Height - Seated (Max) | 0.906" (23.00mm) |
Submit your RFQ for CPAG2222-6R5MC and get a quote within 24 hours.
