SWITCH PUSH DPDT 0.5A 125V

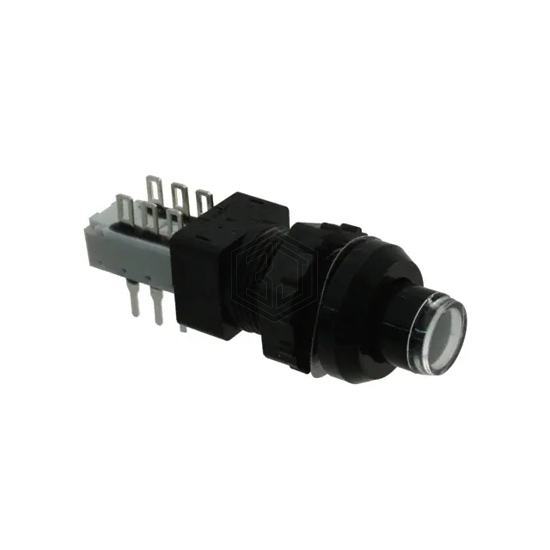

ZFA FA200 BK OG 2U EE is a Pushbutton Switches manufactured by C&K. SWITCH PUSH DPDT 0.5A 125V. Key specifications: mounting type Panel Mount, Right Angle, Rear, operating temperature -40°C ~ 70°C, voltage rating - dc 30 V, current rating (amps) 500mA (AC/DC).
In Stock: 242
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Right Angle, Rear |
| Type | Standard |
| Circuit | DPDT |
| Switch Function | On-On |
| Current Rating (Amps) | 500mA (AC/DC) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
| Actuator Type | Round, Button |
| Actuator Marking | No Marking |
| Color - Actuator/Cap | Orange |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Termination Style | PC Pin, Solder Lug |
| Ingress Protection | - |
| Features | - |
| Panel Cutout Dimensions | Circular - 14.00mm Dia |
| Operating Temperature | -40°C ~ 70°C |
Submit your RFQ for ZFA FA200 BK OG 2U EE and get a quote within 24 hours.
