SWITCH SLIDE DIP SPST 100MA 25V

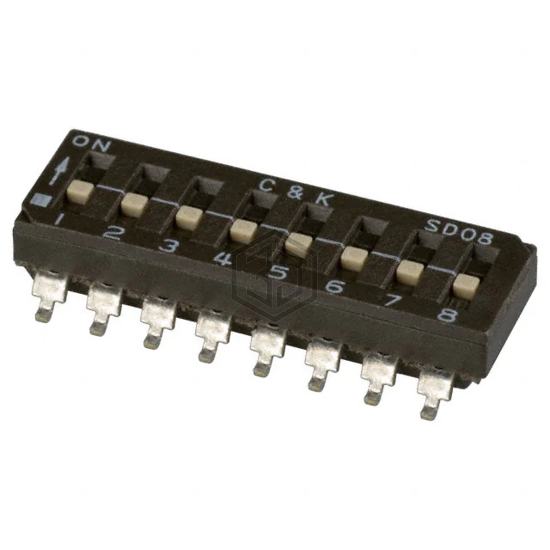

SD08H1SBD is a DIP Switches manufactured by C&K. SWITCH SLIDE DIP SPST 100MA 25V. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage rating 25VDC, contact material Beryllium Copper.
In Stock: 440
| Attribute | Value |
|---|---|
| Product Status | Active |
| Circuit | SPST |
| Number of Positions | 8 |
| Current Rating (Amps) | 100mA |
| Voltage Rating | 25VDC |
| Actuator Type | Slide (Standard) |
| Actuator Level | Raised |
| Contact Material | Beryllium Copper |
| Contact Finish | Gold |
| Height Above Board | 0.165" (4.20mm) |
| Mounting Type | Surface Mount |
| Termination Style | Gull Wing |
| Pitch | 0.100" (2.54mm), Full |
| Washable | No |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
Submit your RFQ for SD08H1SBD and get a quote within 24 hours.
