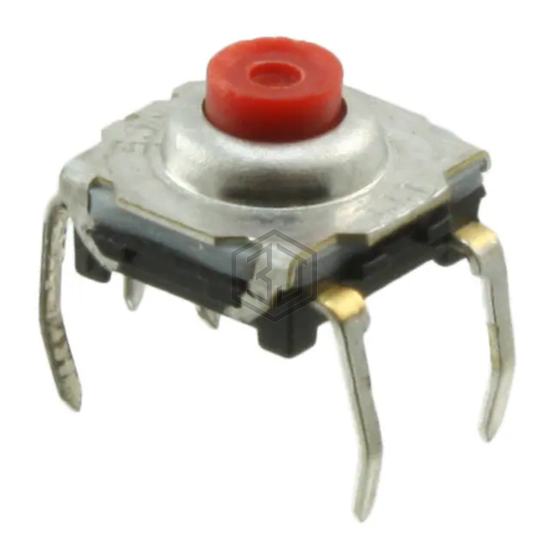

SWITCH TACTILE SPST-NO 0.01A 32V
KSA1M331LFT is a Tactile Switches manufactured by C&K. SWITCH TACTILE SPST-NO 0.01A 32V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, termination style PC Pin, ingress protection IP60 - Dust Tight.
In Stock: 6,820
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.01A @ 32VDC |
| Actuator Type | Standard |
| Mounting Type | Through Hole |
| Actuator Height off PCB, Vertical | 4.70mm |
| Actuator Length, Right Angle | - |
| Actuator Orientation | Top Actuated |
| Termination Style | PC Pin |
| Outline | 7.40mm x 7.40mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Operating Force | 130gf |
| Ingress Protection | IP60 - Dust Tight |
| Features | Grounding Pin |
| Operating Temperature | -40°C ~ 125°C |
