SWITCH ANTIVANDAL 16MM STD RING

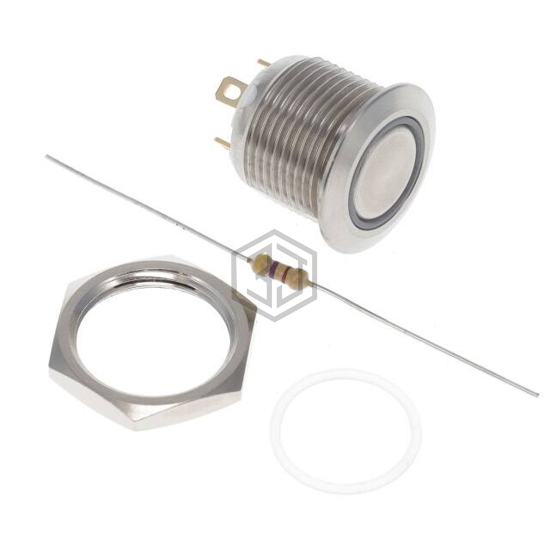

ATP16-SL1-612-M4SA-04G is a Pushbutton Switches manufactured by C&K. SWITCH ANTIVANDAL 16MM STD RING. Key specifications: mounting type Panel Mount, Front, operating temperature -20°C ~ 70°C, voltage rating - dc 36 V, current rating (amps) 2A (DC).
In Stock: 1,670
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Front |
| Type | Anti-Vandal, Illuminated |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Current Rating (Amps) | 2A (DC) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 36 V |
| Actuator Type | Round, Button, Flush |
| Actuator Marking | No Marking |
| Color - Actuator/Cap | Silver |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 12 VDC |
| Termination Style | Solder Lug |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - |
| Panel Cutout Dimensions | Circular - 16.00mm Dia |
| Operating Temperature | -20°C ~ 70°C |
