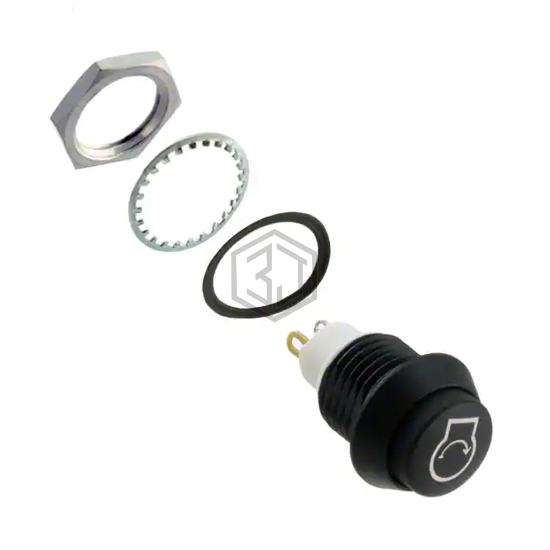

SWITCH PUSH SPST-NO 0.2A 24V
APB4E01TZBE005 is a Pushbutton Switches manufactured by C&K. SWITCH PUSH SPST-NO 0.2A 24V. Key specifications: mounting type Panel Mount, Front, operating temperature -40°C ~ 85°C, voltage rating - dc 24 V, current rating (amps) 125mA (AC), 200mA (DC).
In Stock: 77
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Front |
| Type | Standard, Illuminated |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Current Rating (Amps) | 125mA (AC), 200mA (DC) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 24 V |
| Actuator Type | Round, Button |
| Actuator Marking | Engine Start Symbol |
| Color - Actuator/Cap | Black |
| Illumination Type, Color | LED, White |
| Illumination Voltage (Nominal) | 3.5 VDC |
| Termination Style | Solder Lug |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Epoxy Sealed Terminals |
| Panel Cutout Dimensions | Circular - 13.80mm Dia |
| Operating Temperature | -40°C ~ 85°C |
Submit your RFQ for APB4E01TZBE005 and get a quote within 24 hours.
