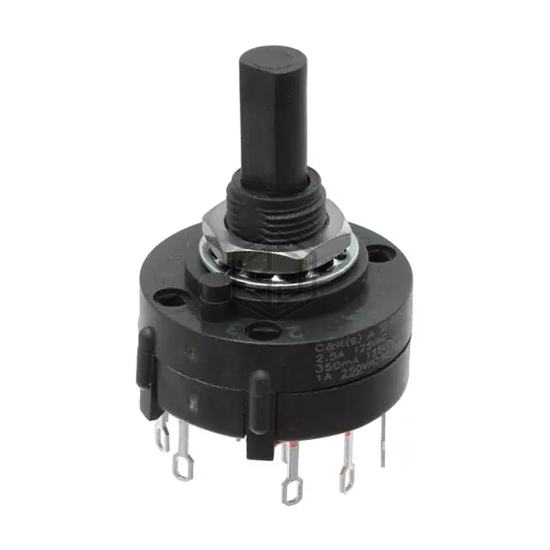

SWITCH ROTARY 3POS 2.5A 125V
A30305RNZQK is a Rotary Switches manufactured by C&K. SWITCH ROTARY 3POS 2.5A 125V. Key specifications: mounting type Panel Mount, voltage rating - dc 125 V, contact material Silver (Ag), current rating (amps) 2.5A (AC), 350mA (DC).
In Stock: 117
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Positions | 3 |
| Index Stops | Fixed |
| Number of Decks | 1 |
| Number of Poles per Deck | 3 |
| Circuit per Deck | 3P3T |
| Contact Timing | Non-Shorting (BBM) |
| Current Rating (Amps) | 2.5A (AC), 350mA (DC) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 V |
| Actuator Type | Flatted (6.35mm Dia) |
| Actuator Length | 12.70mm |
| Angle of Throw | 30° |
| Contact Material | Silver (Ag) |
| Contact Finish | Silver |
| Mounting Type | Panel Mount |
| Termination Style | Solder Lug |
| Features | Epoxy Sealed Terminals, Splashproof Bushing Seal |
| Depth Behind Panel | 20.83mm |
