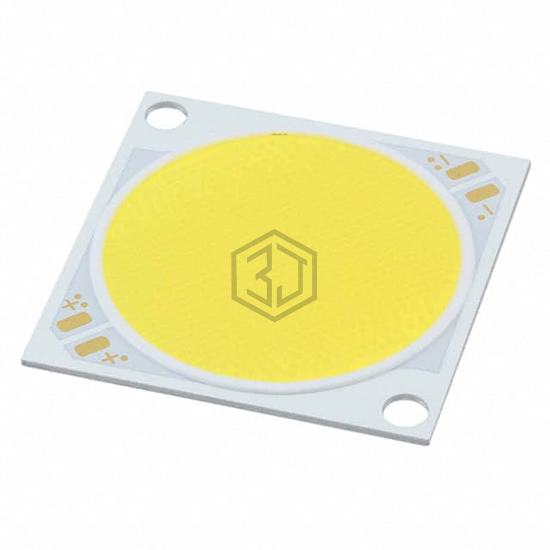

COB LED 5000K 80CRI 33800LM
CLU550-3626C1-503M2G2-B24 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Citizen. COB LED 5000K 80CRI 33800LM. Key specifications: voltage - forward (vf) (typ) 103.9V, color White, Cool, current - max 4.68A, size / dimension 38.00mm L x 38.00mm W.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Type | Chip On Board (COB) |
| Color | White, Cool |
| CCT (K) | 5000K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 33800lm (Typ) |
| Current - Test | 2.34A |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 103.9V |
| Lumens/Watt @ Current - Test | 139 lm/W |
| Current - Max | 4.68A |
| CRI (Color Rendering Index) | 80 |
| Viewing Angle | - |
| Features | - |
| Size / Dimension | 38.00mm L x 38.00mm W |
| Height | 1.40mm |
| Light Emitting Surface (LES) | 32.80mm Dia |
| Lens Type | Flat |
