LED TRI TOP FIRING 1.0 X 1.0

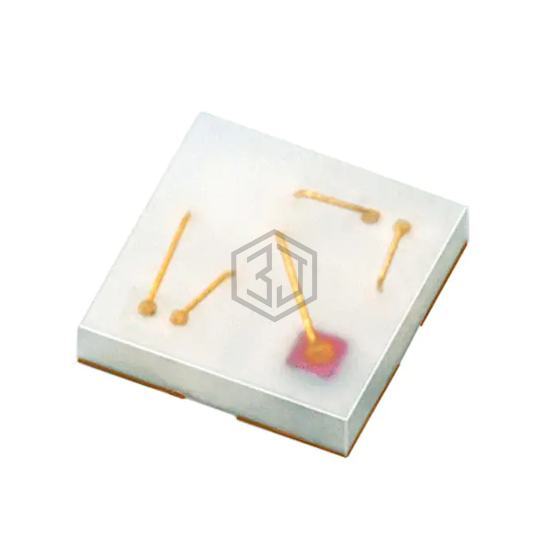

CL-505S-X-SD-T is a LED Indication - Discrete manufactured by Citizen. LED TRI TOP FIRING 1.0 X 1.0. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 1.85V Red, 2.7V Green, 2.75V Blue, package / case 0404 (1010 Metric), color Red, Green, Blue (RGB).
In Stock: 54,802
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | - |
| Lens Transparency | - |
| Millicandela Rating | 40mcd Red, 220mcd Green, 65mcd Blue |
| Lens Style | Square with Flat Top |
| Lens Size | 1.00mm |
| Voltage - Forward (Vf) (Typ) | 1.85V Red, 2.7V Green, 2.75V Blue |
| Current - Test | 5mA Red, 5mA Green, 5mA Blue |
| Viewing Angle | - |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 615nm Red, 530nm Green, 470nm Blue |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 0404 (1010 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 1.00mm L x 1.00mm W |
| Height (Max) | 0.26mm |
Submit your RFQ for CL-505S-X-SD-T and get a quote within 24 hours.
