LED TRI TOP FIRING 1.7 X 1.4

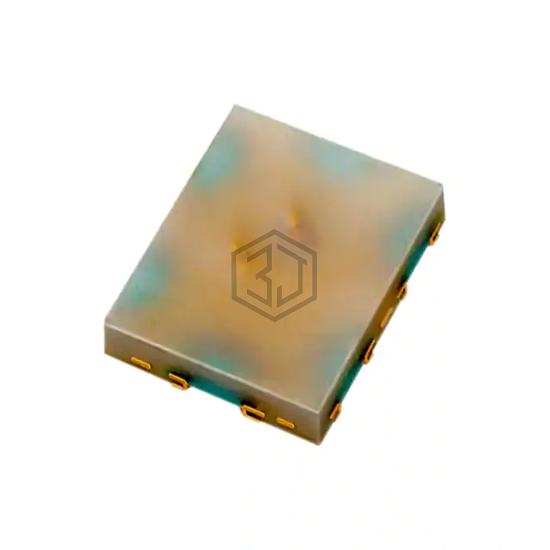

CL-340T-SD-T is a LED Indication - Discrete manufactured by Citizen. LED TRI TOP FIRING 1.7 X 1.4. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 1.85V Red, 2.7V Green, 2.75V Blue, package / case 6-SMD, No Lead, color Red, Green, Blue (RGB).
In Stock: 81,230
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Independent |
| Lens Color | - |
| Lens Transparency | - |
| Millicandela Rating | 36mcd Red, 180mcd Green, 40mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.40mm x 1.70mm |
| Voltage - Forward (Vf) (Typ) | 1.85V Red, 2.7V Green, 2.75V Blue |
| Current - Test | 5mA Red, 5mA Green, 5mA Blue |
| Viewing Angle | - |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 618nm Red, 530nm Green, 470nm Blue |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 6-SMD, No Lead |
| Supplier Device Package | - |
| Size / Dimension | 1.70mm L x 1.40mm W |
| Height (Max) | 0.35mm |
Submit your RFQ for CL-340T-SD-T and get a quote within 24 hours.
