IP67 SNAP ACTION SWITCH, SPDT, G

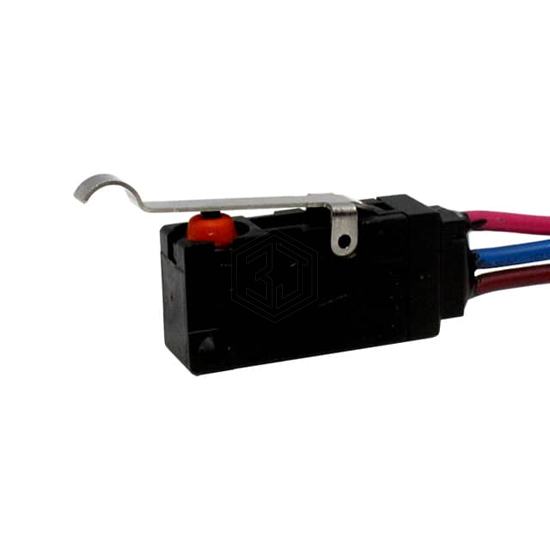

VM3SCGF1803L02 is a Limit Switches manufactured by CIT Relay and Switch. IP67 SNAP ACTION SWITCH, SPDT, G. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 120°C, voltage rating - dc 36 V, current rating (amps) 10A (AC), 6A (DC).
In Stock: 24
| Attribute | Value |
|---|---|
| Product Status | Active |
| Circuit | SPDT |
| Switch Function | On-Mom |
| Current Rating (Amps) | 10A (AC), 6A (DC) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 36 V |
| Actuator Type | Lever, Simulated Roller |
| Mounting Type | Chassis Mount |
| Termination Style | Wire Leads |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - |
| Operating Force | 120gf |
| Release Force | 50gf |
| Pretravel | 0.118" (3.0mm) |
| Differential Travel | 0.050" (1.3mm) |
| Overtravel | 0.039" (1.0mm) |
| Operating Temperature | -40°C ~ 120°C |
Submit your RFQ for VM3SCGF1803L02 and get a quote within 24 hours.
