IP67 SNAP ACTION SWITCH, SPST N.

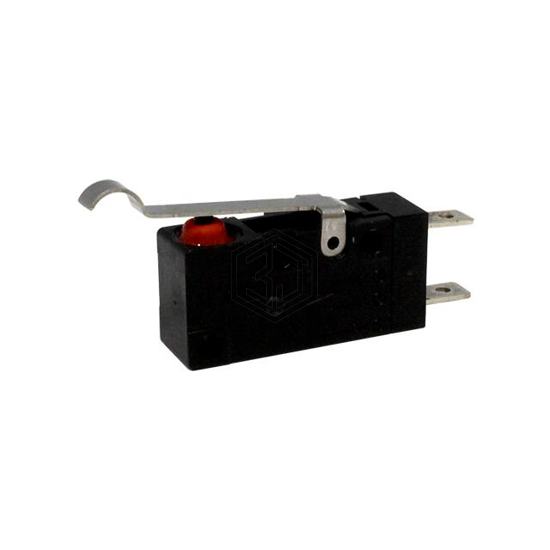

VM3SBGF1802L02 is a Limit Switches manufactured by CIT Relay and Switch. IP67 SNAP ACTION SWITCH, SPST N.. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 120°C, voltage rating - dc 36 V, current rating (amps) 10A (AC), 6A (DC).
In Stock: 78
| Attribute | Value |
|---|---|
| Product Status | Active |
| Circuit | SPST-NC |
| Switch Function | On-Mom |
| Current Rating (Amps) | 10A (AC), 6A (DC) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 36 V |
| Actuator Type | Lever, Simulated Roller |
| Mounting Type | Chassis Mount |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - |
| Operating Force | 120gf |
| Release Force | 50gf |
| Pretravel | 0.118" (3.0mm) |
| Differential Travel | 0.050" (1.3mm) |
| Overtravel | 0.039" (1.0mm) |
| Operating Temperature | -40°C ~ 120°C |
Submit your RFQ for VM3SBGF1802L02 and get a quote within 24 hours.
