ILLUMINATED MULTI-FUNCTION ROCKE

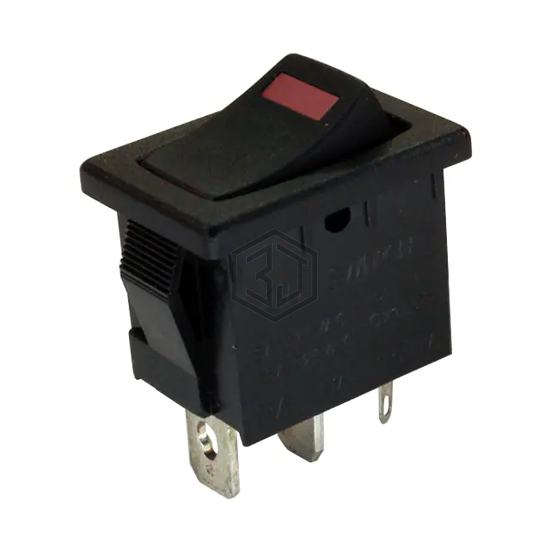

RA1122XCR is a Rocker Switches manufactured by CIT Relay and Switch. ILLUMINATED MULTI-FUNCTION ROCKE. Key specifications: mounting type Panel Mount, Snap-In, Right Angle, operating temperature -40°C ~ 105°C, voltage rating - ac 125 V, current rating (amps) 15A (AC).
In Stock: 194
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Snap-In, Right Angle |
| Circuit | SPST |
| Switch Function | On-Off |
| Current Rating (Amps) | 15A (AC) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | - |
| Actuator Type | Concave (Curved) - Illuminated |
| Color - Actuator/Cap | Black |
| Actuator Marking | No Marking |
| Illumination Type, Color | LED, Red |
| Illumination Voltage (Nominal) | - |
| Termination Style | PC Pin |
| Ingress Protection | - |
| Features | - |
| Panel Cutout Dimensions | Rectangular - 19.40mm x 13.00mm |
| Operating Temperature | -40°C ~ 105°C |
Submit your RFQ for RA1122XCR and get a quote within 24 hours.
