DIP SWITCH DPST 4 POSITION THROU

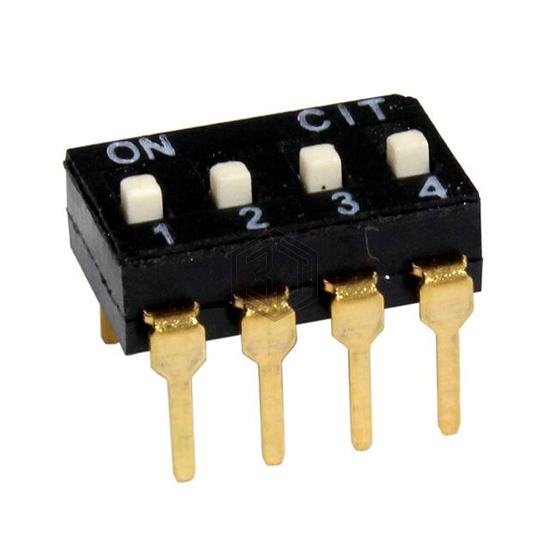

KT04ETH is a DIP Switches manufactured by CIT Relay and Switch. DIP SWITCH DPST 4 POSITION THROU. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating 24VDC, contact material Beryllium Copper.
In Stock: 2,177
| Attribute | Value |
|---|---|
| Product Status | Active |
| Circuit | SPST |
| Number of Positions | 4 |
| Current Rating (Amps) | 25mA |
| Voltage Rating | 24VDC |
| Actuator Type | Slide (Standard) |
| Actuator Level | Raised |
| Contact Material | Beryllium Copper |
| Contact Finish | Gold |
| Height Above Board | 0.167" (4.25mm) |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Pitch | 0.100" (2.54mm), Full |
| Washable | Yes |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
